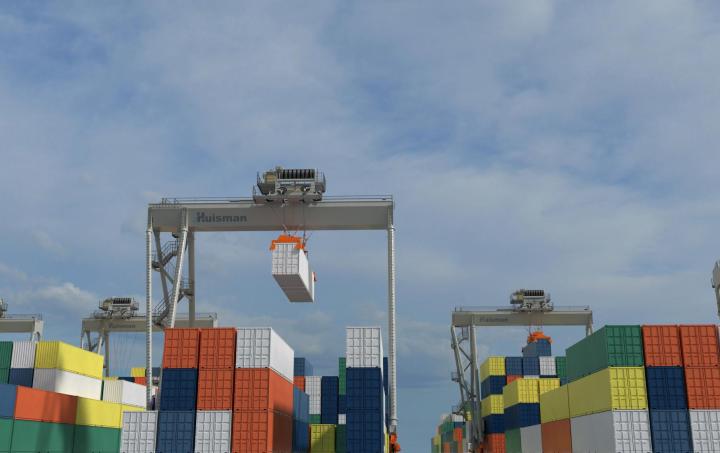

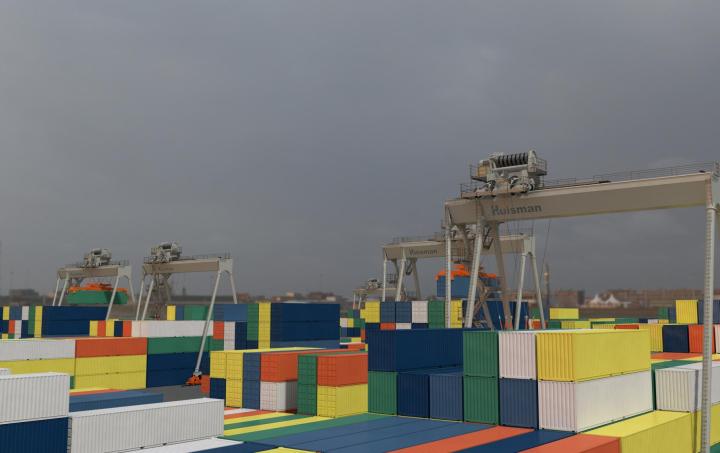

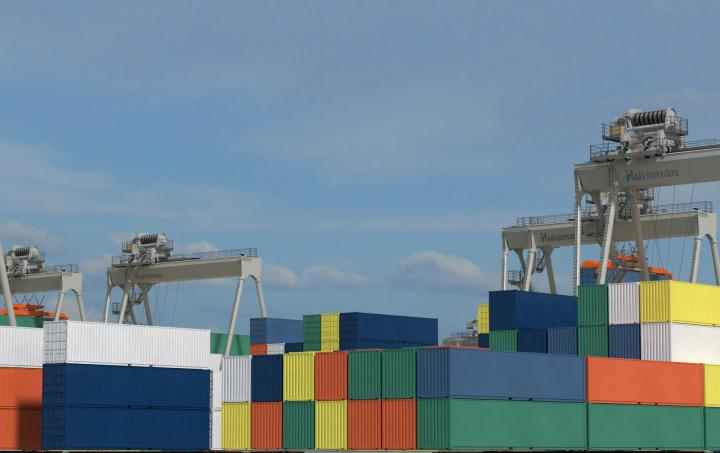

The Huisman Automated Stacking Crane (ASC or ARMG) is designed for efficient and reliable container handling at deep-sea terminals. Featuring a fully automated process for container handling and buffering, our ASCs ensure seamless, round-the-clock operations, maximising efficiency, accuracy, and uptime in demanding port environments.

High positioning accuracy

High positioning accuracy

Advanced sensor and target positioning systems in combination with a stiff construction and reeving system, ensure precise container stacking.

Fully automated and integrated

Fully automated and integrated

Seamlessly interfaces with the terminal operating system (TOS) for efficient, 24/7 automated container handling.

Optimised lifecycle management

Optimised lifecycle management

Designed for durability with high-quality European components and reduced maintenance needs, supported by myHuisman, ensuring optimal performance and reliability.

/ 特点

High-quality European-made components applied
Fully automated crane, interfaced to terminal operating system

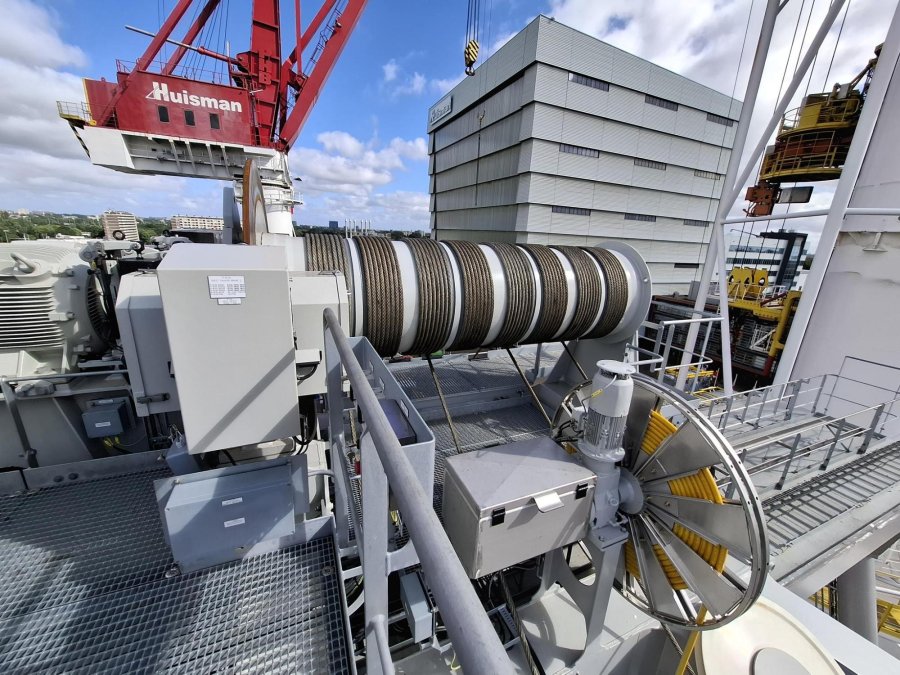

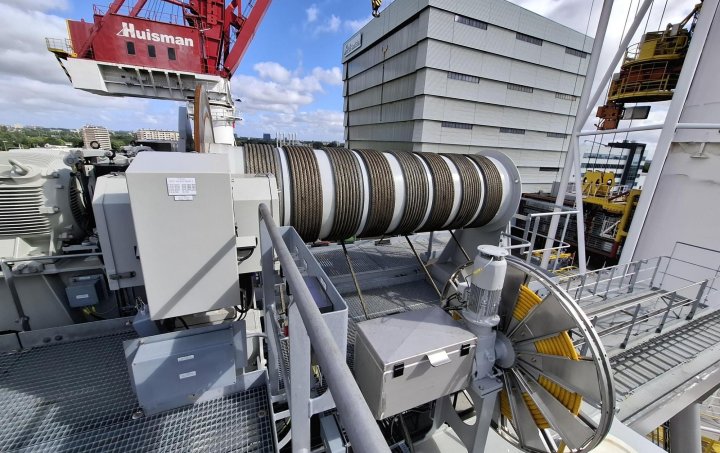

Single hoist winch for reduced maintenance
High positioning accuracy by absolute positioning sensor system in combination with target positioning system
Excellent accessibility and replacement facilities to components for maintenance and service
Single box girder for high rigidity
* Specifications can be tailored upon request

/ 技术规格

  • Safe Working Load under spreader 41mt
  • Stiff eight-point rope reeving
  • 1:5 or 1:6 stacking height
  • Up to 11 container stack width
  • Design life > 4.000.000 handling cycles
  • Component life > 50.000 running hours
