/ rail mounted gantry cranes

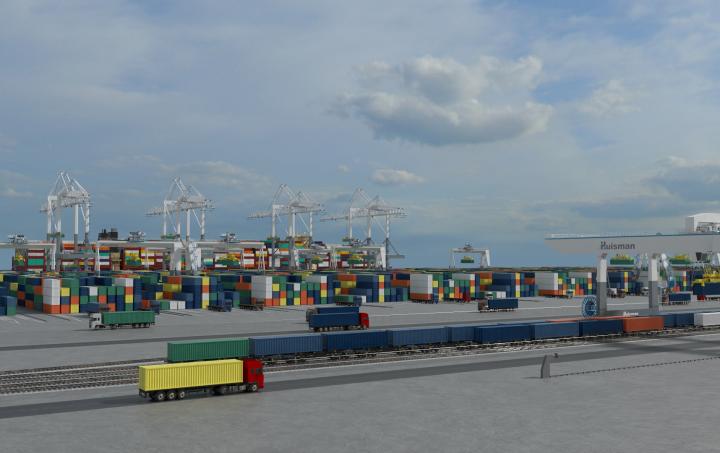

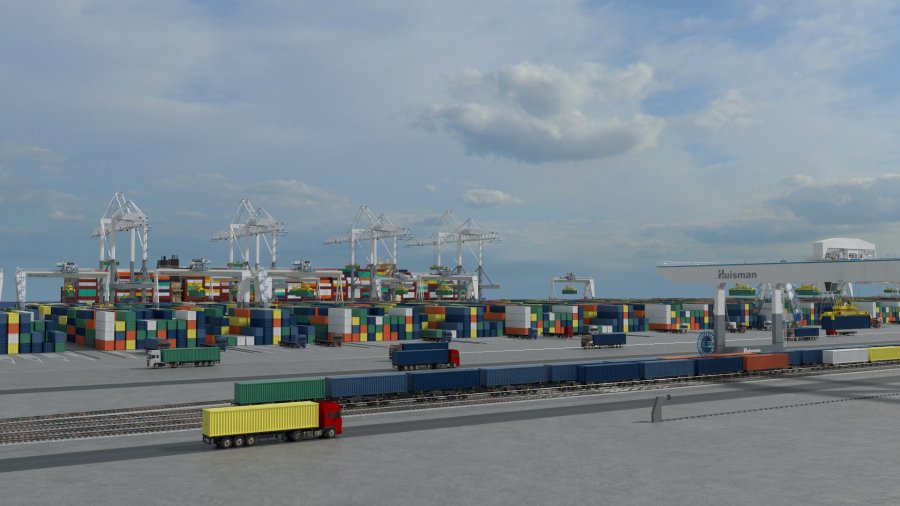

The Huisman Rail Mounted Gantry Crane is designed for efficient, high-precision container handling at deep-sea, near-shore, and inland terminals. Its gantry structure enables seamless transfer from (terminal) trucks, trains,and AGVs, with space for storage stacks or rail tracks for smooth operations.

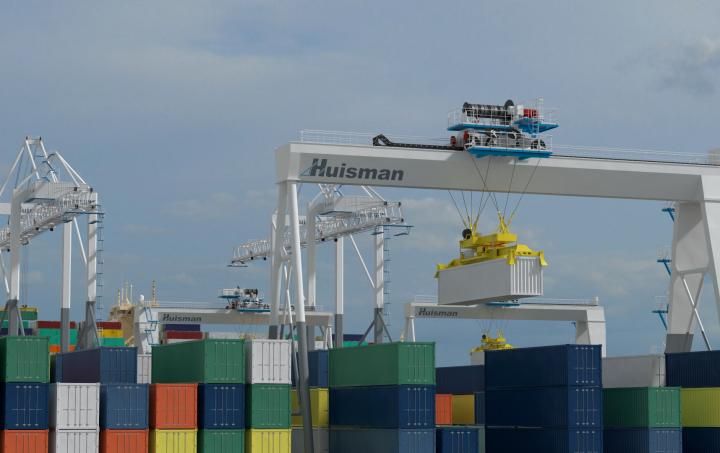

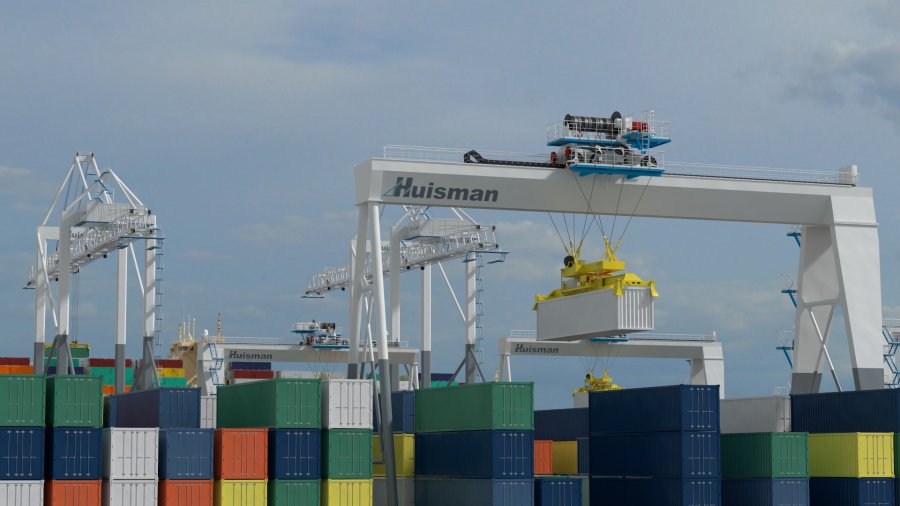

Built for stability and accuracy, it supports 45ft containers traveling between its legs, ensuring secure handling of large loads. A trolley-mounted slew platform enables precise container rotation and placement.



For maximum flexibility, the Rail Mounted Gantry Crane can be operated from a control cabin or remotely, integrating seamlessly with semi- or fully automated operations.



With a stiff rope reeving system, high-quality European components, and the proven Huisman offshore engineering approach, the Rail Mounted Gantry Crane offers durability, reliability, and easy maintenance. Supported by our global service network, it ensures optimal performance in modern port logistics.

High precision & versatile handling

High precision & versatile handling

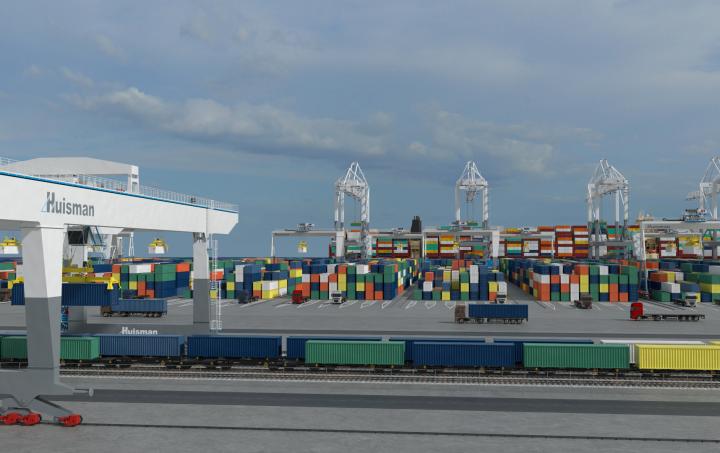

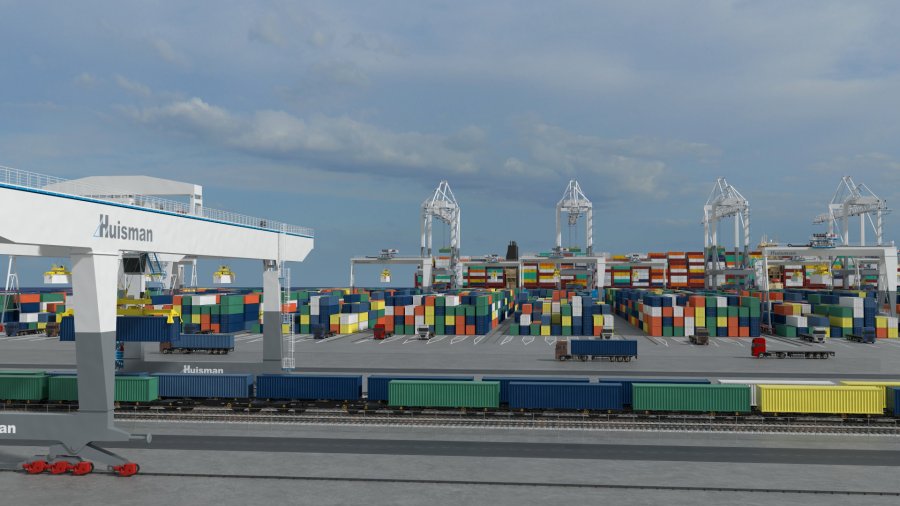

The gantry structure allows efficient container transfer from (terminal) trucks, AGVs, and trains, with space for storage stacks or rail tracks. A trolley-mounted slew platform ensures precise positioning and rotation.

Automation-ready

Automation-ready

Operable via a control cabin or remotely, seamlessly integrating with semi- or fully automated terminal systems for enhanced efficiency.

Reliable and low maintenance

Reliable and low maintenance

Featuring a stiff rope reeving system, and high-quality European components, ensuring durability and easy maintenance.

/ 技术规格

  • SWL below upper block 40 – 65 mt
  • Height 1 over 4-6
  • Turntable rotation  220 deg
  • Gantry travel 100 – 400 m
  • Hoist speed  40-90 m/min
  • Gantry travel speed 40-120 m/min
  • Trolley travel speed 90-180 m/min
  • Slewing speed 0.5-3 rpm
  • Gantry rail span 30-50 m
  • Maximum outreach on cantiliver  17 m
  • Remote controlled, collision avoidance system, truck lifting prevention, service crane on trolley

*Specifications can be tailored upon request.
